Implement a workflow with Radial

This walkthrough records a small change: reject a blank release note. You will define the stages and gate in JSON, run a failing test through the CLI, fix the implementation, and inspect both attempts.

The example uses a local draft and sends nothing to Radial. You can complete the local steps without signing in. The final section explains how to start a real run on an issue before recording its checks.

Prepare a scratch repository

You need Git, Node.js 20 or later, and the Radial CLI. Use an empty directory so the example does not replace an active build or an existing pipeline. Check that your installed CLI exposes the build commands:

radial build help
mkdir radial-workflow-example
cd radial-workflow-example
git init
radial build pipeline init
mkdir -p src

Your repository will contain:

.radial/
  pipeline.json
  build.json          # local pointer, created when the draft starts
src/
  release-note.mjs
  release-note.test.mjs
.gitignore

Create .gitignore with .radial/build.json on its own line. Commit the pipeline definition with your source files. The build pointer is local to this checkout; the journal lives outside the repository.

Define the process and its configuration

The acceptance criteria are that whitespace is trimmed from a release note and an empty or whitespace-only note throws an error. The unit gate checks both. For this exercise, you act as the implementer and inspect the evidence before finishing the run.

Replace .radial/pipeline.json with:

{
  "version": 1,
  "stages": [
    { "id": "plan", "position": 0 },
    { "id": "build", "position": 1 },
    { "id": "verify", "position": 2 }
  ],
  "gates": [
    { "id": "unit", "tiers": ["T0", "T1", "T2", "T3"] }
  ]
}

radial build pipeline show

The output should identify the repo as the configuration source and list plan, build, verify, and the unit gate. The JSON declares the vocabulary for this run. The commands below drive it; stage ordering and gate completeness are not enforced by the configuration.

Open the draft and record the plan

radial build start --draft release-note --workspace workflow-example
radial build stage start plan
radial build stage done plan --payload '{"baseline":"Release notes accept whitespace-only input. Trim notes and reject empty input; verify both with node:test."}'
radial build stage start build

The first command prints Draft opened and nothing sent. Later commands use the pointer in .radial/build.json. The baseline field is required when completing the built-in plan stage.

Set a shell variable for the journal directory so you can read its logs:

release_journal="${RADIAL_BUILDS_DIR:-${RADIAL_CONFIG_DIR:-$HOME/.config/radial}/builds}/workflow-example/drafts/release-note"

This matches the directory printed when the draft opens, including a custom CLI configuration or build directory if you use one.

Implement the change and expose the failure

Create src/release-note.mjs with this incomplete implementation:

export function releaseNote(input) {
  return input.trim();
}

Create src/release-note.test.mjs:

import assert from 'node:assert/strict';
import test from 'node:test';
import { releaseNote } from './release-note.mjs';

test('trims a release note', () => {
  assert.equal(releaseNote('  Fixed search  '), 'Fixed search');
});

test('rejects empty and whitespace-only notes', () => {
  for (const input of ['', '   ']) {
    assert.throws(() => releaseNote(input), /Release note is required/);
  }
});

Commit the candidate so the recorded stages can name a revision:

git add .gitignore .radial/pipeline.json src/release-note.mjs src/release-note.test.mjs
git commit -m "test: specify release note validation"
radial build stage done build
radial build stage start verify
radial build gate --gate unit --exec -- node --test src/release-note.test.mjs

The gate exits nonzero and records failed. One test passes; the empty-note test fails. Record the failed verification attempt and read the command output. Run these blocks separately, so a shell that stops on failure does not skip this step:

radial build stage done verify --status red --payload '{"outcome":"failed"}'
cat "$release_journal/artifacts/unit-1.log"

Command logs live in the journal's artifacts directory. --exec captures output there; the terminal prints the gate result and an extracted summary rather than the full test output. Open the log to inspect the assertion failure.

Fix the change and keep both attempts

radial build stage start build

Replace src/release-note.mjs with:

export function releaseNote(input) {
  const note = input.trim();
  if (!note) throw new Error('Release note is required');
  return note;
}

git add src/release-note.mjs
git commit -m "fix: reject blank release notes"
radial build stage done build
radial build stage start verify
radial build gate --gate unit --exec -- node --test src/release-note.test.mjs

This gate should exit zero and record pass as attempt 2. Check the log for two passing tests and zero failures. The CLI assigns the result from the exit code; confirming that the intended tests ran remains your responsibility.

cat "$release_journal/artifacts/unit-2.log"
radial build stage done verify --payload '{"outcome":"pass"}'
radial build drafts
radial build finish

The record retains both gate attempts and both verification attempts. Finishing the draft leaves it local. It does not merge code, close an issue, or grant release approval.

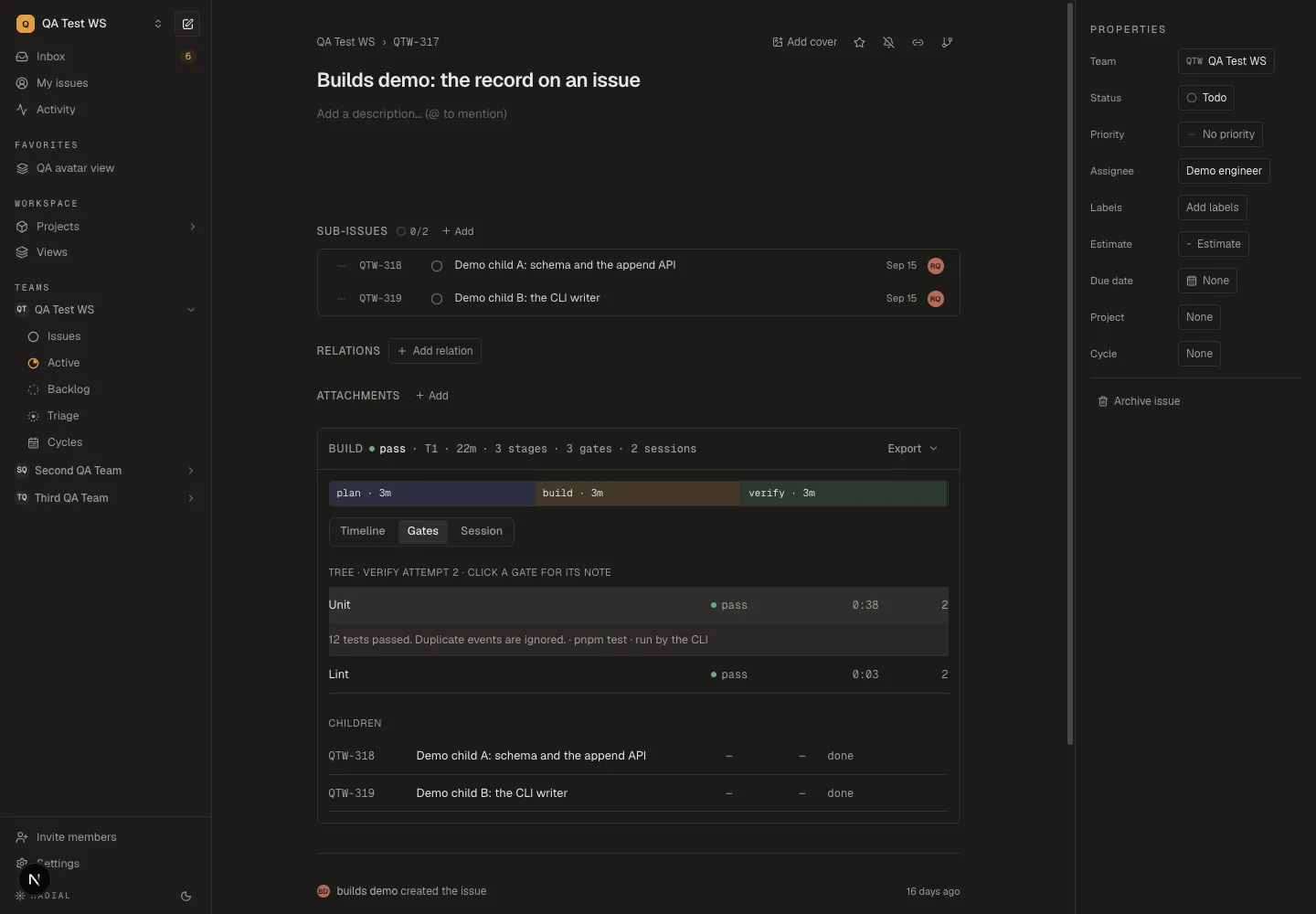

The latest result appears first. The failed attempt remains underneath, and opening the gate's note reveals the evidence and how it was recorded.

Read or resume the work later

radial build drafts
cat "$release_journal/journal.jsonl"

To continue this same draft, open it again with radial build start --draft release-note --workspace workflow-example, then start the stage you are working on. Re-entering a stage adds an attempt. Read the existing record before repeating a command; the CLI does not decide which checks a new commit makes stale.

In a new terminal, set release_journal again using the command above. radial build show --local reads issue-bound builds; unbound drafts are inspected through their journal and logs.

Attach a real run to an issue

For team work, authenticate with radial auth and select the intended workspace with radial workspace use. Start a draft in that workspace, or open a build on an existing issue with radial build start and its issue key. The explicit workflow-example workspace above is only for the local exercise.

Once a real draft has an issue, radial build bind followed by that issue's key replays its stage history. Bind before recording verification gates: the current draft replay does not preserve draft gate rows on the issue. Start a real build on its issue before running the checks you want your team to inspect.

On the issue, inspect Build → Timeline for stage attempts and Gates for results and evidence. Capturing the chat requires a separate build hook.

Binding publishes the draft's stage history to your workspace. Check the destination before running it. Drafts are listed by workspace; to inspect this exercise after switching workspaces, use radial build drafts --workspace workflow-example.

Adapt the example to your team

Replace the test command with your repo's verification command. Keep gate ids aligned with Pipeline configuration. When using the agent skills, put exact commands in an rd-verify wrapper; rd-build owns recording its returned results.

Use CI and code-host rules for required checks and reviewer approval. Keep your release procedure responsible for permission to deploy and checking the running revision. Radial's build record gives reviewers the history to inspect; the current pipeline does not enforce those transitions or approvals.
